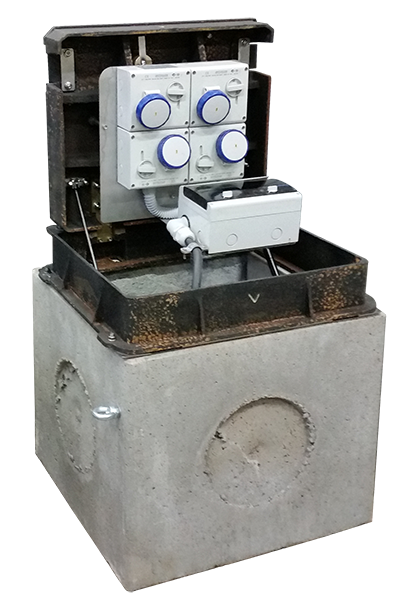

Retractable power tower VM03 flip lid unit
The flip lid supply unit VM03 is part of the New VMR retractable power tower for the distribution of energy and other complementary services, such as water, compressed air, data transmission and audio systems.
It is possible to access the services when the manhole cover is in rest position, thanks to the presence of two special rubberized doors for cable outlet.
The retractable power tower VM03 for the distribution of services proves to be extremely useful thanks to its resistance in areas with a large passage of vehicles, such as in workshops, roads, squares, parking lots, industrial warehouses, ...
It is composed of its cement containment well and a spheroidal cast iron manhole cover with double gas actuator for opening; the unit is safe thanks to the bronze lock with bayonet, which is protected against dust and water by a hinged door.
New VMR offers a tailor-made design service, in order to meet the client needs.
Technical details
GENERAL DESCRIPTION
The VM03 retractable power tower of New VMR for the distribution of electrical power and complementary services, such as water, compressed air, data transmission and audio systems, is composed of its concrete product and a spheroidal cast iron manhole cover with non-slip surface according to UNI EN 124 class D400, with 585x540mm rectangular base with net light 485x407mm and complete with two rubberized doors for cable outlet.
The union of the cover and the frame is ensured by replaceable bronze hinges.
The opening of the manhole cover is eased by a double gas actuator and a pivot partially removable from the lid surface.
The closing of the manhole cover is guaranteed by the bronze lock with bayonet protected from dust and water by a hinged door.
The containment structure is made of stainless steel AISI304 of 20/10 thickness.
Spheroidal cast iron cover, load class D400, certified according to UNI EN124 and certification body marked
TECHNICAL DETAILS
Structure
RBK concrete box
Structure made of AISI304 stainless steel
Structure made of AISI316L stainless steel (only on demand)
Connection system
Connection with junction box
Electrical specs
Voltage 230V/400V
Frequency from 50hz to 60hz
Standard protection of the sockets IP67 or IP68
Regulation EN 60947-1 and EN 61439
Additional equipment
Compressed air outlets
Audio / video connectors
RJ-data / video / telephone jacks
Water outlets / valves 1/2" or 3/4"
Energy consumption meters
Water consumption meters
Prepaid system with rechargeable BADGE cards and CONTROL TOTEM
Equipment examples
New VMR equips its flip lid units for the distribution of services with IP67 sockets.
Below you can see some examples of electrical configurations for the retractable power tower type VM03:
Equipment A:
04 2P+E 16A sockets
04 RCBOs 1P+N 16A 6ka 0,03
01 ball valve 1/2" (on the plate)
01 heating kit
Equipment B:
06 2P+E 16A sockets
06 RCBOs 1P+N 16A 6ka 0,03
01 heating kit
Equipment C:
02 2P+E 16A sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A socket
01 RCBO 4x16A 6ka 0,03
01 3P+N+E 32A socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment D:
03 2P+E 16A sockets
03 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A socket
01 RCBO 4x16A 6ka 0,03
01 heating kit
Equipment E:
02 2P+E 16A sockets
02 RCBOs 1P+N 16A 6ka 0,03
02 3P+N+E 16A sockets
02 RCBOs 4x16A 6ka 0,03
01 heating kit
Equipment F:
03 2P+E 16A sockets
03 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 32A socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment G:
02 2P+E 16A sockets
02 RCBOs 1P+N 16A 6ka 0,03
02 3P+N+E 32A sockets
02 RCBOs 4x326A 6ka 0,03
01 heating kit
Equipment H:
01 3P+N+E 63A socket with electrical interlock
01 RCBO 4x63A 6ka 0,03
01 heating kit
Equipment I:
02 2P+E 16A interlocked sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A interlocked socket
01 RCBO 4x16A 6ka 0,03
01 heating kit
Equipment L:
02 2P+E 16A interlocked sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 32A interlocked socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
