Retractable Power Tower VM02 flip lid
The supply flip lid unit VM02 is part of the New VMR retractable power tower family for the distribution of energy and other complementary services, both when it is open and when the cover is closed, thanks to its special rubber door for the cable outlet .
The VM02 service distribution unit proves to be extremely useful when there is little space and every centimeter needs to be exploited: small marketplaces, workshops, industrial warehouses, hangars, gyms are just few examples of contexts in which optimizing spaces is high-performant choice.

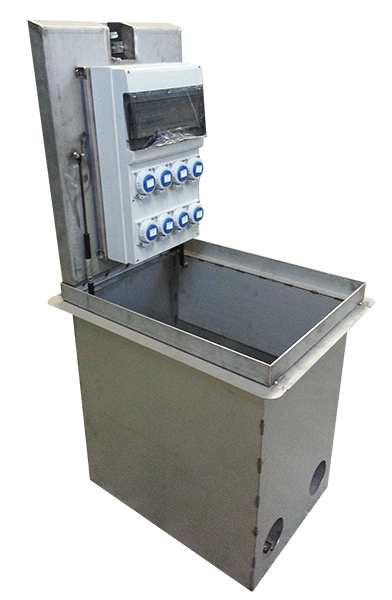

The supply unit VM02 is available in different formats: 40x40, 50x50, 60x60 and 70x50.

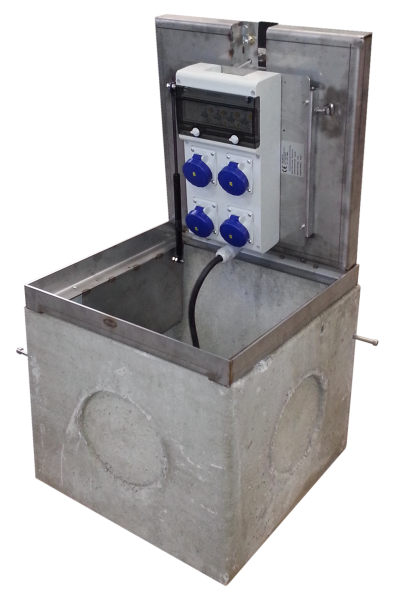

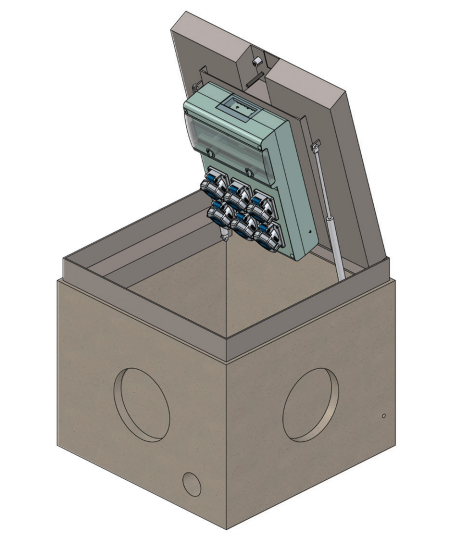

It is composed by its concrete box and by a stainless steel structure with dual gas actuator for opening.
New VMR offers a tailor-made design service, in order to meet the client needs.
Technical details
GENERAL DESCRIPTION
The VM02 retractable power tower by New VMR for the distribution of electricity and complementary services, such as water, compressed air, data transmission and audio systems, can also be used with the cover in rest position, using the special rubberized door for cable outlet.
The unit is composed of a stainless steel mechanical structure and a RBK 300 concrete containment box.
The manhole cover is made of stainless steel and is available as to fill or with an almond finishing.
Its opening is eased by a pivot partially removable from the lid surface and by the double gas actuator springs; while, its closing is guaranteed by a safety bronzed bayonet lock in AISI304 stainless steel operated by a square or triangular key.
The VM02 model comes in three different formats: the model 40x40, the model 50x50, the model 60x60 and the model 70x50.
For the specific technical description of each model download the document from the red box below.
Manhole covers available
· Stainless steel* cover with 400KN almond finish
· Stainless steel* cover with 250KN filling
* electro pickling and electropolishing with passivation of stainless steel treatment to finish and clean the covers from welding marks
TECHNICAL DETAILSStructure
RBK concrete box
Structure made of AISI304 stainless steel
Structure made of AISI316L stainless steel (only on demand)
Connection system
Connection with junction box
Electrical specs
Voltage 230V/400V
Frequency from 50hz to 60hz
Standard protection of the sockets IP67 or IP68
Regulation EN 60947-1 and EN 61439
Additional equipment
Compressed air outlets
Audio / video connectors
RJ-data / video / telephone jacks
Water outlets / valves 1/2" or 3/4"
Energy consumption meters
Water consumption meters
Prepaid system with rechargeable BADGE cards and CONTROL TOTEM
Equipment examples
New VMR equips its flip lid units for the distribution of services with IP67 sockets.
Below you can see some examples of electrical configurations for the retractable power tower type VM02, model 40x40:
Equipment A:
01 2P+E 16A CEE socket
01 RCBO 1P+N 16A 6ka 0,03
01 3P+N+E 32A CEE socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment B:
02 2P+E 16A CEE sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A CEE socket
01 RCBO 4x16A 6ka 0,03
01 heating kit
Equipment C:
03 2P+E 16A CEE sockets
03 RCBOs 1P+N 16A 6ka 0,03
01 heating kit
Equipment D:
01 2P+E 32A CEE socket
01 RCBO 1P+N 32A 6ka 0,03
01 heating kit
Equipment E:
01 3P+N+E 32A CEE socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment F:
02 2P+E 16A interlocked sockets with fuse
01 3P+N+E 16A interlocked socket with fuse
01 3P+N+E 32A interlocked socket with fuse
Equipment G:
03 2P+E 16A interlocked sockets with fuse
01 3P+N+E 16A interlocked socket with fuse
Equipment H:
04 2P+E 16A interlocked sockets with fuse
Equipment I:
04 ball valves 1/2"
Equipment L:
02 ball valves 1/2"
02 water meters
Equipment M - suitable for showrooms and indoors:
04 civil sockets
04 SCHUKO sockets
01 heating kit
Below you can see some examples of electrical configurations for the retractable power tower type VM02, model 50x50:
Equipment A:
04 2P+E 16A sockets
04 RCBOs 1P+N 16A 6ka 0,03
01 ball valve 1/2" (on the plate)
01 heating kit
Equipment B:
06 2P+E 16A sockets
06 RCBOs 1P+N 16A 6ka 0,03
01 heating kit
Equipment C:
02 2P+E 16A sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A socket
01 RCBO 4x16A 6ka 0,03
01 3P+N+E 32A socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment D:
03 2P+E 16A sockets
03 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A socket
01 RCBO 4x16A 6ka 0,03
01 heating kit
Equipment E:
02 2P+E 16A sockets
02 RCBOs 1P+N 16A 6ka 0,03
02 3P+N+E 16A sockets
02 RCBOs 4x16A 6ka 0,03
01 heating kit
Equipment F:
03 2P+E 16A sockets
03 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 32A socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment G:
02 2P+E 16A sockets
02 RCBOs 1P+N 16A 6ka 0,03
02 3P+N+E 32A sockets
02 RCBOs 4x326A 6ka 0,03
01 heating kit
Equipment H:
01 3P+N+E 63A socket with electrical interlock
01 RCBO 4x63A 6ka 0,03
01 heating kit
Equipment I:
02 2P+E 16A interlocked sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 16A interlocked socket
01 RCBO 4x16A 6ka 0,03
01 heating kit
Equipment L:
02 2P+E 16A interlocked sockets
02 RCBOs 1P+N 16A 6ka 0,03
01 3P+N+E 32A interlocked socket
01 RCBO 4x32A 6ka 0,03
01 heating kit
Equipment M - suitable for showrooms and indoors:
04 2P+E 16A interlocked sockets
04 RCBOs 1P+N 16A 6ka 0,03
